How to Create a Custom Post Type with Image Uploads For WordPress 3

I’ve been working on a project to create a CMS for a series of dental websites. One of the important things is to be able to make the CMS as simple as possible for the end users, so I’ve set out using WordPress 3’s new custom post types to create and display these nice and neat. For this example I wanted to create a post type for “Before and After” images. Rather than having the end user have to go to media, upload it, and then grab the link for the page I wanted to have them to be able to go in to a “Before and After” post type and simply upload1 upload2 and press publish. Here’s how I went about doing it.

Step 1 : Create the Custom Post type

Custom post types are pretty easy to create:

// Creates before and after post type
add_action('init', 'post_type_before_after');
function post_type_before_after()
  $labels = array(
    'name' => _x('Before and Afters', 'post type general name'),
    'singular_name' => _x('Before and After', 'post type singular name'),
    'add_new' => _x('Add New', 'before_and_after'),
    'add_new_item' => __('Add New Before and After')

 $args = array(
    'labels' => $labels,
    'public' => true,
    'publicly_queryable' => true,
    'show_ui' => true,
    'query_var' => true,
    'rewrite' => true,
    'capability_type' => 'post',
    'hierarchical' => true,
    'menu_position' => null,
    'supports' => array('title','excerpt'));

Step 2: Creating the meta boxes

The custom post type above if you look at the code

 'supports' => array('title','excerpt'));

What this does is tell WordPress what stuff you want on the admin page. I only want the title and excerpt fields on mine because I’m going to add some extras. You could also add, “editor”,
comments” etc..

	'title' => 'Before and Afters',
	'page' => 'before_and_after',
	'context' => 'normal',
	'priority' => 'high',
	'fields' => array(
			'name' => 'Before',
			'desc' => 'Select a Before Image',
			'id' => 'upload_image',
			'type' => 'text',
			'std' => ''
			'name' => '',
			'desc' => 'Select an After Image',
			'id' => 'upload_image_button',
			'type' => 'button',
			'std' => 'Browse'
			'name' => 'After',
			'desc' => 'Select an After Image',
			'id' => 'upload_image2',
			'type' => 'text',
			'std' => ''
			'name' => '',
			'desc' => '',
			'id' => 'upload_image_button2',
			'type' => 'button',
			'std' => 'Browse'

add_action('admin_menu', 'mytheme_add_box');

// Add meta box
function mytheme_add_box() {
	global $meta_box;
	add_meta_box($meta_box['id'], $meta_box['title'], 'mytheme_show_box', $meta_box['page'], $meta_box['context'], $meta_box['priority']);

// Callback function to show fields in meta box
function mytheme_show_box() {
	global $meta_box, $post;
	// Use nonce for verification
	echo '';
	echo '';

	foreach ($meta_box['fields'] as $field) {
		// get current post meta data
		$meta = get_post_meta($post->ID, $field['id'], true);
		echo '',
	echo '
'; switch ($field['type']) { //If Text case 'text': echo '', '
', $field['desc']; break; //If Text Area case 'textarea': echo '', '
', $field['desc']; break; //If Button case 'button': echo ''; break; } echo '
', '
'; } add_action('save_post', 'mytheme_save_data'); // Save data from meta box function mytheme_save_data($post_id) { global $meta_box; // verify nonce if (!wp_verify_nonce($_POST['mytheme_meta_box_nonce'], basename(__FILE__))) { return $post_id; } // check autosave if (defined('DOING_AUTOSAVE') && DOING_AUTOSAVE) { return $post_id; } // check permissions if ('page' == $_POST['post_type']) { if (!current_user_can('edit_page', $post_id)) { return $post_id; } } elseif (!current_user_can('edit_post', $post_id)) { return $post_id; } foreach ($meta_box['fields'] as $field) { $old = get_post_meta($post_id, $field['id'], true); $new = $_POST[$field['id']]; if ($new && $new != $old) { update_post_meta($post_id, $field['id'], $new); } elseif ('' == $new && $old) { delete_post_meta($post_id, $field['id'], $old); } } } function my_admin_scripts() { wp_enqueue_script('media-upload'); wp_enqueue_script('thickbox'); wp_register_script('my-upload', get_bloginfo('template_url') . '/functions/my-script.js', array('jquery','media-upload','thickbox')); wp_enqueue_script('my-upload'); } function my_admin_styles() { wp_enqueue_style('thickbox'); } add_action('admin_print_scripts', 'my_admin_scripts'); add_action('admin_print_styles', 'my_admin_styles');

Ok so what this has done is write all of the meta box fields that you want. The php reads what you put in the array and all of those switch cases check to see what kind of input field it is then create the format accordingly. You can copy and paste that exactly as is and it will work for this tutorial.

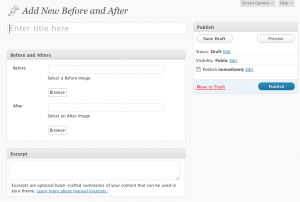

This should leave you with

Step 3: Getting the WordPress Media Upload working for the browse buttons

So now we have the meta boxes for the custom field but what we want is the end user to be able to click browse and upload an image or select from the gallery. Just for usability sake you know? Heres how we do it.

If you look at the code above

 function my_admin_scripts() {
wp_register_script('my-upload', get_bloginfo('template_url') . '/functions/my-script.js', array('jquery','media-upload','thickbox'));
function my_admin_styles() {
add_action('admin_print_scripts', 'my_admin_scripts');
add_action('admin_print_styles', 'my_admin_styles');

This loads the wp_enqueue_script(‘thickbox;), as well as registers the “my-upload” function which will be used to link to some jquery that adds functionality to our browse buttons.

Step 4: The Jquery for the Browse Buttons

jQuery(document).ready(function() {

jQuery('#upload_image_button').click(function() {
											  window.send_to_editor = function(html) {
 imgurl = jQuery('img',html).attr('src');


 tb_show('', 'media-upload.php?post_id=1&type=image&TB_iframe=true');
 return false;


jQuery(document).ready(function() {

jQuery('#upload_image_button2').click(function() {
											   window.send_to_editor = function(html) {
 imgurl = jQuery('img',html).attr('src');


 tb_show('', 'media-upload.php?post_id=1&type=image&TB_iframe=true');
 return false;


Want to learn more WordPress?

This book is way worth checking out if your just getting in to WordPress. Chris Coyier is awesome and this book is a great place to start.

108 Responses to How to Create a Custom Post Type with Image Uploads For WordPress 3

  1. Levi July 28, 2010 at 4:18 pm #

    Thanks for a very informative post.

    Though I think you forgot to list where to add the function code.


  2. admin July 28, 2010 at 6:17 pm #

    everything goes in the functions file, step 4 is in a separate .js file though.

  3. chugs August 3, 2010 at 4:47 pm #

    I have been trying to implement this code.
    I am having trouble with the image upload function. I am able to create the meta box with the browse button and the upload box also pops up. But on clicking on the “Insert into post” link, nothing happens.
    I was wondering what the expected result should be and if you could give any inputs on what might be going wrong.

    PS – I am able to save whatever I copy/paste into the meta box.

  4. admin August 3, 2010 at 8:40 pm #

    Hey Chugs,
    Is the image uploading fine? Do you see what you select in your media gallery? If so it is a problem with the javascript portion.


    make sure “#upload_image” is the ID of the text input field of your image. If you look at the array in Step2

    'id' => 'upload_image',

    this is where the ID is defined. Basically the jquery is looking for ID upload_image text box to paste to when you click on “Apply To Post”.
    Of course you can name this whatever you want.

    'id' => 'anything-goes-here'

    works as long as the Jquery is also changed to

  5. chugs August 4, 2010 at 9:54 am #

    No the image doesn’t get uploaded into the media gallery.
    A copy/pasted value gets saved though.

    Am posting my functions.php code and the js file code here –

  6. mkjones October 22, 2010 at 10:28 am #

    Hey Michael,

    I’m not getting the ‘Insert Into Post’ button on the upload. The images are going up just fine, they appear in the media library and as a gallery if you add more than 1.

    At first I though this was at fault in the JS:

    tb_show('', 'media-upload.php?post_id=1&type=image&TB_iframe=true');

    What with ‘post_id’ equalling ‘1’ but after hacking around that it still doesn’t seem to work.

    Any ideas?

  7. Michael October 23, 2010 at 7:18 pm #

    hey Kimb, I’m going to have a look at this on Monday and probably rewrite and package it up for download. If you haven’t found you’re solution check back and I can help you out, could even be as early as tomorrow. :)

  8. Hal October 26, 2010 at 8:16 pm #

    Hey, this all works for me just fine! Thanks. But one issue, the images get uploaded fine, they are in the media gallery, etc, but they have no post_parent value (is always ‘0’, so there seems to be no way to retrieve them later from the theme. How does that association work? Is there some mechanism other than post_parent to know which item is the attachment of which post? Is there a way to set this explicitly somewhere that I am missing. Thanks, again!

  9. jeanbasket October 27, 2010 at 12:40 pm #

    Just the topics i was lokking for.
    Please, where do you put the js script?

  10. Michael November 1, 2010 at 8:29 pm #

    the javascript goes in to /functions folder in your theme.

  11. Michael November 1, 2010 at 8:30 pm #

    the association is stored in the posts meta if you need the code to output this let me know

  12. Michael November 1, 2010 at 8:30 pm #

    if you go in to “Show” on the right hand side the insert in to post is at the bottom, it’s hard to see if you have lots of images in your library.

  13. anver November 2, 2010 at 11:17 pm #

    Same problem as “chugs” everything works fine except the image url is not getting pasted into the textbox after clicking the “insert into post” button inside the media upload window. I just copied and pasted everything exactly as in this page. Any help is appreciated.

  14. Michael November 4, 2010 at 8:08 pm #
    window.send_to_editor = function(html) {
     imgurl = jQuery('img',html).attr('src');

    this is where your image upload is posted to the box. make sure your text box is the same id (#upload_image for this example)

  15. Conor November 6, 2010 at 10:08 pm #

    Thanks for this code man, great help! Much appreciated :)

  16. Michael November 7, 2010 at 3:27 pm #

    no problem, glad to help.

  17. chris November 10, 2010 at 11:52 am #

    could anyone please explain how one could define a custom template for the media uploader.

    All i want to do is have the browse button show a list of all the files within the media library BUT I would like to have each media library elements with the optional fields of category & tags… I would then just like to define (filter) the list of available media library elements based on specific categories and/or tags. In other words, if the media does not have a category of “XXX” and/or tag(s) of “YYY” then the browse button media list will not show the media within the library if the browse button is clicked.

    Any help would be greatly appreciated.

  18. Paul November 10, 2010 at 9:03 pm #

    I solved the problem that chugs and anver were having where nothing would happen when they clicked, “Insert into post”.

    Replace this line:
    imgurl = jQuery(‘img’,html).attr(‘src’);

    With this:
    imgurl = jQuery(html).attr(‘src’);

    Or this:
    imgurl = jQuery(html).attr(‘src’) || jQuery(html).find(‘img’).attr(‘src’) || jQuery(html).attr(‘href’);

  19. Paul November 10, 2010 at 9:06 pm #

    Here is the full code:


    jQuery('#banner_image_button').click(function() {
    window.send_to_editor = function(html) {
    //imgurl = jQuery('img', html).attr('src');
    imgurl = jQuery(html).attr('src');// || jQuery(html).find('img').attr('src') || jQuery(html).attr('href');
    tb_show('', 'media-upload.php?post_id=1&type=image&TB_iframe=true');
    return false;


  20. Beth November 12, 2010 at 8:58 am #

    Having trouble pulling this into my template, could someone please post an example of how to output this? Thank you!!

  21. Beth November 12, 2010 at 9:08 am #

    Ah never mind, I was over complicating this:

    echo get_post_meta($post->ID, 'upload_image', true);

  22. Mark December 3, 2010 at 4:21 pm #

    You rock! I spent all day trying to get this to work with a ton of other blogs and tutorials. So close… I nearly gave up. Literally, I was shutting down for the day and decided to make one last search.

    This works perfectly. As is. No edits. THANK YOU!

  23. Ron S. Doyle December 7, 2010 at 1:47 am #

    Thanks so much for the excellent tutorial. I’ve been through 3 or 4 others with no success—yours is the only one that worked!

    I thought I’d share my solution for adding different file types, specifically PDF:

    Change these two lines:
    imgurl = jQuery('img',html).attr('src');

    To this:
    fileurl = jQuery(html).attr('href');

  24. Ron S. Doyle December 7, 2010 at 1:48 am #

    Oh, and naturally the #upload_pdf is a reference to a different ID… 😉

  25. Marc December 9, 2010 at 2:52 pm #

    I have copied and pasted all of the code as is; everything seems to work, but when I preview the draft I do not see any pictures.

    I could really really use help on this. Thanks!

  26. clint December 13, 2010 at 8:21 pm #

    i’ve been looking for an upload box like this for days!
    works great!!! THANKS!!

    i do have one question, and it’s just a matter of style and not functionality … but is there a way that i can use just the plain ‘ole “browse for file” method like i’d use on a normal form (as opposed to the fancy thickbox uploader). I’d rather the clients just hit the browse button, then select their file (thus skipping the “insert into post” step)

  27. Beth December 20, 2010 at 3:31 pm #

    For those wondering how to attach to the correct post, this is what I came up with:

    postid = jQuery('#post-id').val();
    tb_show('', 'media-upload.php?post_id=' + postid + '&type=image&TB_iframe=true')

    where #post-id is a hidden input field with the post id for a value.

    In my case, post id #1 doesn’t exist anymore…

  28. Tewonawonga December 22, 2010 at 12:53 am #

    I’m having two issues:

    1) Every single image uploaded for this custom post type appears on the Gallery tab. When I check the Media Library, I see that all the images are incorrectly associated with the same post.

    2) I’ve implemented this on three sites already (yay!). The “Insert into Post” button does not appear on one of them (boo!). Any ideas?

  29. bruno January 6, 2011 at 10:48 am #

    Great article. With this code, the post is saved, only if you put a title. Usually, the posts in WordPress are saved if you not put a title. Best regards.

  30. John Chandler January 12, 2011 at 8:00 pm #

    This is a fantastic write-up. Thanks. I have one suggestion, and one question.

    I’m using this with a child theme, so I had to change the wp_register_script line from get_bloginfo(‘template_url’) to get_bloginfo(‘stylesheet_directory’) for it to properly find my .js file. Might be worth changing that in your post for others using a child theme?

    Like Tewonawonga above, the “Insert into Post” link is also not appearing for me at the bottom of the uploader. Any suggestions?

  31. Michael January 12, 2011 at 8:09 pm #

    thanks, I’ll check it out. I found out for some reason .gif images don’t give the “Insert in to Post”, is it a .gif you’re testing with?

  32. Michael January 12, 2011 at 8:09 pm #

    thanks :)

  33. Michael January 12, 2011 at 8:11 pm #

    the images are stored as meta data in the draft, so the preview you would be viewing would need to have the meta echoed out or you wouldnt see anything. If you still need help come back and I can show you what to do.

  34. John Chandler January 13, 2011 at 4:21 am #

    I’m not using a .gif. I’ve tested with a .jpg. Ultimately, I want to use a .pdf, and also tried it with the suggestion mentioned in the comments above for a .pdf, but it’s the same result either way.

    The “Use as Featured Image” and “Delete” links appear, but not the “Insert Into Post”…

  35. Jason January 13, 2011 at 10:24 am #

    I loved this tutorial as well. Much time saved. I really appreciate it, but I’m also having trouble making the “Insert into post” option appear. I tried the solution suggested by Paul, but that didn’t work for me.

    Same as John Chandler, I’m not using a .gif and I do get the “Use as Featured Image” and “Delete” links.

  36. Jason January 13, 2011 at 10:34 am #

    Actually, I just noticed that on a new upload, the insert to post link is there, it’s just not there if I’m trying to use something that’s already in the media library. . .

  37. John Chandler January 13, 2011 at 1:16 pm #

    You’re a step ahead of me…I don’t have that “Insert into post” option in any of the tabs.

  38. Ben Borman January 14, 2011 at 10:01 pm #

    +1 On the “Insert Into Post” bug – The button is not showing. I would greatly appreciate a fix, as this is an immensely useful function!

  39. Jason January 16, 2011 at 6:58 pm #

    Hmm. . .Not sure what the bug could be.

    I did find this tutorial though, which seems to have some similar information on creating the upload option. . .

  40. Ben Borman January 18, 2011 at 5:54 pm #

    @Jason Thanks for the link. So after some tinkering, I have it working, but in the opposite way that you mentioned above – When I do a new upload, the Insert button does not appear. If I switch to the Media Library tab and choose an image, I can select an image and Insert Into Post from there. It’s an extra step for the end user, but at least I have functionality during development…

  41. 3emeOeil January 19, 2011 at 1:56 pm #

    Thanks for this great tutorial.
    Everything works fine for me except for
    the echo get_post_meta($post->ID, ‘upload_image’, true); witch display the url of the meta box content and not the image.
    How can i fix that?
    Thanks @Ron S Chandler for the pdf trick and the @john Chandler for the child theme one
    What about a word file?

  42. 3emeOeil January 20, 2011 at 4:44 am #

    ok i found out for the echo with :
    <a href="ID, ‘upload_pdf’, $single = true); ?>”…

    How can i add a doc type now?
    Thanks for your help

  43. Ron S. Doyle January 22, 2011 at 4:14 pm #

    Thanks for the replies, Michael. Awesome tutorial.

    I’m uploading PNGs, GIFs, PDFs, etc. They all have the same problem.

    Want to know something even stranger? I’m using this media uploader script for multiple clients and getting different results on each. Sometimes it works fine, other times it doesn’t. Weird, eh?

  44. Jaki Levy February 5, 2011 at 2:33 am #

    This is a really solid tutorial – nice work, here and solid documentation.

    For people looking for other tutorials / references , check out this tutorial on ThinkVitamin – I found this post a pretty useful guide as well :

  45. Towfiq I. February 6, 2011 at 7:37 am #

    I found a fix for the “insert into post” button disappearing.
    Change this code:
    postid = jQuery(‘#post-id’).val();
    tb_show(”, ‘media-upload.php?post_id=’ + postid + ‘&type=image&TB_iframe=true’)


    postid = jQuery(‘#post-id’).val();
    tb_show(”, ‘media-upload.php?post_id=’ + 1 + ‘&type=image&TB_iframe=true’)

    I know it is not the best way but at-least it works :(

  46. Fredrik February 12, 2011 at 5:22 pm #


    I assume that you should put the first block of code first, the second block under the first and the third under the second block of code in function.php

    Allthough I get a error message when doing this. Can you please add a complete description of all the code together without divided up in three different like it is now?

    / Fredrik

  47. Melinda February 15, 2011 at 11:53 pm #

    I am having the same problem with the “Insert into Post” button. It doesn’t show up. Any ideas how to fix this?

  48. Ryan February 16, 2011 at 10:18 pm #

    Melinda, I tried Towfiq’s solution but it didn’t work for me. The only way I’ve been able to get around this is with a CORE hack which is obviously a last resort as it will have to be re-done every time you update WP.

    If you just need it to work though you can change line 1267 in:

    from ($send) to (!$send) and ta-da! Hopefully that will get updated in a later release but for now its all that I’ve found that works consistently.

  49. Michael February 22, 2011 at 12:31 pm #

    Hey everybody, so the reason you probably aren’t getting the “Insert Into Post” is because the editor is disabled on your custom post type. I had to revisit this today and so far I have it working if when you register the post type you include the editor

    ‘supports’ => array(‘title’,’excerpt’,’editor’));

  50. Melinda February 22, 2011 at 2:48 pm #

    I now have the Insert into post working. How do I add the meta box to another custom post type (‘page’ => ‘portslider’,)? Can I add one to another custom post type for example ‘mycustomposttype2’?

  51. Michael February 23, 2011 at 2:35 pm #

    You would add a whole new meta box for that page. Including a whole new array in $metabox

    'id' => 'my-meta-box2',
    'title' => 'something_else',
    'page' => 'some_other_page...',
    'context' => 'normal',
    'priority' => 'high',
    'fields' => array(......etc)

  52. Sup3rnaut March 13, 2011 at 10:26 am #

    I get this working for one custom post type, but trying to add it to another one doesnt work for me using the code above. Does $meta_box need to have an array inside to hold the individual pages e.g
    $meta_box = array(
    $meta_box01 = array(
    ‘id’ => ‘my-meta-box’,
    ‘title’ => ‘something_else’,
    ‘page’ => ‘some_other_page…’,
    ‘context’ => ‘normal’,
    ‘priority’ => ‘high’,
    ‘fields’ => array(……etc)

  53. Michael March 13, 2011 at 9:38 pm #

    yes, every page you want a new metabox on you should add a new array inside the meta_box array. like you have $meta_box01, then you would have $meta_box02, etc..

  54. Foomagoo March 15, 2011 at 12:49 pm #

    Works like a charm!

  55. Michael March 18, 2011 at 3:34 pm #

    glad I could help :)

  56. Bobby Adamson March 22, 2011 at 7:12 pm #

    Where do you put the javascript code? I’m a n00b

  57. Bobby Adamson March 22, 2011 at 7:16 pm #

    Sorry, figured it out! Would you mind maybe editing your original post with the answers to some of the questions people have posted in the comments? Thanks for the awesome plugin!

  58. Kym Van Arsdale March 31, 2011 at 7:13 pm #

    Great tutorial. Got it working and it is sweet! Thanks so much.

    For everyone having problems with the Insert into Post button coming up, I was also having this issue. I finally created a hidden input in my HTML and made the value equal to the post id. Then in the JavaScript, I used HTML DOM to look up the value of the hidden input and replaced the post_id=1 portion of the media URL with the actual post id. Worked like a charm.

    I also got it to accept pdfs using jQuery(html).attr(‘href’); instead of jQuery(‘img’,html).attr(‘src’);

  59. Todd April 20, 2011 at 5:58 am #

    Cheers for this, it helped a lot!

  60. Michael April 20, 2011 at 5:35 pm #

    Glad to hear it!

  61. Frank Prendergast April 27, 2011 at 2:38 pm #

    Thanks a million for documenting this, very very handy… however I found that the images uploaded fine to the media library but were not attached to the post in question. Does anyone have a fix for this?Thanks!

  62. Kyle Newsome May 9, 2011 at 2:36 pm #

    Works fantastic! Thanks so much for posting this.

    One small issue that @Kym Van Arsdale noticed, is that you are attaching the image to post # 1 a.k.a “Hello World” in your ‘tb_show()’ . This doesn’t seem to affect the upload/post type association but it isn’t exactly correct either. Inputting the correct post_id seems to create no image attachement association, which is better than nothing.

  63. Roger F May 24, 2011 at 1:58 am #

    You’re the man! Thanks for sharing.

  64. Michael May 26, 2011 at 5:13 pm #

    thanks. Glad to help.

  65. Ingmar June 6, 2011 at 10:48 am #

    is there any way to create a option field? I’ve tried to add this to the function.php file:

    case 'selectyear':
    echo '
    Jaar 1
    Jaar 2
    '', $field['desc'];

    But this will automatically add option 2 to the custom field.

    Suggestions anybody?


  66. Ingmar June 6, 2011 at 10:51 am #

    I’m sorry, I don’t have much experience questioning on blogs. So I’ve just used the ‘code’ tags to put my code into, but I see that’s not working.

    My code again:

    //If Select Year option list
    case ‘selectyear':
    echo ‘
    Jaar 1
    Jaar 2
    ”, $field[‘desc’];

  67. Ingmar June 6, 2011 at 10:53 am #

    no that’s not working either..
    anyway, any help is really appriciated!

  68. Anthony June 11, 2011 at 9:15 pm #

    I am still having a problem with the “Insert to Post” button not showing up.

    I have tried all the suggestions in the comments, and also my Custom Post has an editor.

    Was there any other solutions for this?

  69. Giri dhar June 17, 2011 at 8:58 pm #

    Awesome tutorial. I think it would be nice if you give the source code as downloadable files. :)

  70. adam June 18, 2011 at 6:39 pm #

    hi – this is great thx so much.

    i am having trouble when i hit publish on the created page – i get a blank screen. i am working locally though, would this make any difference?

  71. Jason June 26, 2011 at 9:42 am #

    Fantastic post!!!!! – with this it’s now easy to turn the back-end of WordPress into a highly customized CMS (especially great for less tech-saavy clients who won’t have to mess around with using special categories to mark the News vs Case Studies vs Articles posts.

    The next step would be to turn this all into an admin function on a theme so you could create new custom posts directly via the theme’s admin area. If I get anywhere on this I’ll post up some code 😉

  72. Jason June 26, 2011 at 7:35 pm #

    Drat. I can’t seem to get a second custom post type working. Trying to insert the second meta_box in the array as per the comments above, but I don’t think I’m modifying the calls correctly to attach them to the new custom post type (what’s happening it I’m getting the second post type but without any of the custom fields I added).

    Would someone mind posting a snipping of their functions.php code which does this? Much appreciated!!!!

  73. Zyrq July 6, 2011 at 9:39 am #

    Great writeup and it works flawlessly, thanks for this!
    I have one question though.
    When I output the image I can only get the original size as ‘inserted in post’
    get_post_meta($post->ID, ‘upload_image’, true)

    The other sizes are in the uploads folder, how can I use these?
    Ideally I would like to insert the thumb size with a link to the original size.
    Any ideas? thanks!

  74. Moncler July 13, 2011 at 12:37 pm #

    thanks for you share with us, I think it would be nice if you give the source code as downloadable files.

  75. watermelonkid August 10, 2011 at 1:32 am #

    Like Anthony and some of the others, I cannot get the Insert into Post link to show up despite following all the advice here. I’m trying to use this as a PDF uploader, and I’ve made the appropriate changes to the jQuery for that–but no dice! Anyone able to point in the right direction or share your solution if you too are using it as a PDF loader! Many thanks!

  76. Thomas August 12, 2011 at 5:05 pm #

    Works great. You’re the man Michael. My only thing which is odd is when I click “Update” to finalize it it takes me to a white screen at http://wp.localhost/wp-admin/post.php


  77. Thomas August 12, 2011 at 5:14 pm #

    Nevermind. I removed a couple of the items I didn’t need in the array and it worked. Strange doings! Thanks 😉

  78. watermelonkid August 15, 2011 at 3:00 pm #

    Anyone have a code sample using this to upload PDFs? Been through this 3 times, and still can’t the Insert into Post link to appear. Appreciate any help or guidance if anyone has this working with PDFs.

  79. Zean Design August 17, 2011 at 12:47 pm #

    watermelonkid, si trabaja para PDFs

    Code my-script.js

    jQuery(document).ready(function() {
    jQuery(‘#upload_image_button’).click(function() {
    formfield = jQuery(‘#upload_image’).attr(‘name’);
    tb_show(”, ‘media-upload.php?type=image&TB_iframe=true’);
    return false;
    window.send_to_editor = function(html) {
    //imgurl = jQuery(‘img’,html).attr(‘src’); //image
    imgurl = jQuery(html).attr(‘href’); //others

  80. Gavin August 22, 2011 at 5:19 pm #

    This was very useful, thank you for the documentation. I do believe I am the developer that inherited this code :)…

  81. Juli August 23, 2011 at 7:11 pm #

    Amazing tutorial, Thanks a lot.
    I have a small problem, I want to add a checked or select, one of this two will be great.

    I have added the checked like this, but it doesn’t work, any help will be apreciated, thanks.

    // If Checked
    case 'checked':
    echo '<input type="checkbox" name="', $field['id'], '" id="', $field['id'], '" value="', $meta ? $meta : $field['std'], '" />',

    '<br />', $field['desc'];

  82. Juli August 23, 2011 at 7:59 pm #

    After a few minuts, solucion resolved, if someone need this:

    // If checkbox
    case 'checkbox':
    echo '<input type="checkbox" name="', $field['id'], '" id="', $field['id'], '"', $meta ? ' checked="checked"' : '', ' />',

    '<br />', $field['desc'];

    Thanks one more time!

  83. woolrich arctic parkas August 26, 2011 at 9:20 pm #

    I have a small problem, I want to add a checked or select, one of this two will be great.

    I have added the checked like this, but it doesn’t work, any help will be apreciated, thanks.

    // If Checked
    case ‘checked':
    echo ”,

    ”, $field[‘desc’];

  84. The North Face September 15, 2011 at 5:30 am #

    Alice the North Face’s effortlessly recognizable emblem, which is composed of three concentrically scaled-down quarter-circles, is an interpretation of the famed Half Dome rock formation in Yosemite National Park.The North Confront expanded in the 1980’s to to create a line of excessive skiwear, and by the conclude of the decade they had become the only supplier in the U.S.

  85. Jeff September 29, 2011 at 6:46 pm #

    This post was a life saver. I have everything working perfectly right now, except one thing. How do I add this to all post types? I tried adding an array to the page option, but it doesn’t work right in an array.

    $meta_box = array(

    ‘id’ => ‘featured-meta-box’,
    ‘title’ => ‘Feature This on the Homepage Slider?’,
    ‘page’ => array( ‘post_service’, ‘post’, ‘page’)
    ‘context’ => ‘normal’,
    ‘priority’ => ‘high’,
    ‘fields’ => array(

    Any ideas?

  86. Lee Mason October 17, 2011 at 5:32 am #

    I found a solution to the “insert into post” button bug.

    the solution is a bit sub optimal as it means the images arent attached to the post (but are still uploaded and the values will fill in the text areas on the meta boxes). it just means when viewing the media area you wont see the post id attached to the images (small price to pay for working script).

    simply change this:

    tb_show(”, ‘media-upload.php?post_id=1&type=image&TB_iframe=true’);

    to this:

    tb_show(”, ‘media-upload.php?type=image&TB_iframe=true’);

  87. Moncler October 26, 2011 at 12:21 am #

    Today ,i look this article i find that it is a good .YOU are so great.

  88. onyou October 26, 2011 at 6:29 am #

    Thanks for posting this tutorial!

    Obviously there is a problem with the “insert into post” button when trying to attach media without the editor. A very simple solution is to hide the editor instead of disable it:

    function my_post_type_head(){
    if (get_post_type()==”your_post_type”){
    echo ” .postarea{display:none} “;

    Hope this helps someone!

  89. intricatesoundsystems October 31, 2011 at 2:15 pm #

    where exactly does the jquery / javascript code go?

  90. Design Collector November 9, 2011 at 10:25 am #

    Great article! Thanks for writing the tutorial. It works preperly!

  91. NSME November 18, 2011 at 4:04 am #


    Nice tutorial, but i´ve got a problem with the jQuery script… when i´m create a new Post, my Buttons doesn´t work… Includepath:


    php file path

  92. sebastien November 30, 2011 at 8:26 am #

    Hi, i want to change the folder for the images uploaded with this uploader.
    How can i do this ?

  93. Payer en ligne December 5, 2011 at 3:42 am #

    Hello, I’m very happy to have found this script, thanks a lot… but i don’t know how to display images on post now…! I know i’m not good developer .. Could you help me please?

  94. Paiement en ligne December 5, 2011 at 3:45 am #

    Sorry i found the answer… it was in the first section of your comments…! You are the man thanks for this trick !

  95. Michael December 20, 2011 at 12:02 am #

    You’re welcome

  96. Michael December 20, 2011 at 12:03 am #

    The URL’s of the images are stored as post meta. Check, to see how to pull the value of the post meta fields. Let me know if that helps.

  97. Michael December 20, 2011 at 12:06 am #

    They should be uploaded to your default uploads folder. You can change your default upload folder in the settings of your WP site. Settings -> Media

  98. Michael December 20, 2011 at 12:06 am #

    You’re welcome.

  99. tyler December 27, 2011 at 7:28 pm #

    Reformatted the Javascript to be more readable and flexible.

    jQuery(document).ready(function() {
    //when user clicks button or text input, we launch the code.
    jQuery(‘div.inside input:button, div.inside input:text’).click(function() {
    //grab the input name info.
    var title = jQuery(this).attr(‘id’);
    var image_id = title.replace(“_button”, “”);

    window.send_to_editor = function(html) {
    imgurl = jQuery(‘img’,html).attr(‘src’);
    jQuery(“#” + image_id).val(imgurl);

    tb_show(”, ‘media-upload.php?post_id=1&type=image&TB_iframe=true’);

    return false;


  100. davide January 3, 2012 at 1:52 pm #

    first of all thank you for this tutorial, it seems the only one on the web that seems to work.

    @Tyler Your script looks very clever but it doesn’t work for me, did you tested it?

    by the way I still don’t know how to show the uploaded images inside the post, do someone know how to display it?

    thank you

  101. serene January 16, 2012 at 4:52 am #

    thanks for this great tut!

    one question: i have made a single select box type and works great.

    but what about multiple select, and checkbox? it does not return all selected values, only the last one selected.
    any tips on these without involving javascript? i have jquery method but i would not use that if it can be avoided.


  102. serene January 17, 2012 at 8:08 am #

    figured it out :)

  103. Victor Hugo June 19, 2012 at 8:01 pm #

    for me this works perfect! i use as a plugin for a very specific custom post type that i create before, i just have a question, can i get images upload to my editor, this new function change the original behavior of “insert into post”, now when i choose the original uploader and click on insert into post, nothing happens, any help?

  104. Barbara July 16, 2012 at 11:33 am #


    Anyone know how I can attach the image to the correct post?

  105. Ricky August 6, 2012 at 10:22 am #

    Same question as above, anybody knows how to output images in different sizes? Like thumbnail, medium, large?
    great tuts tank u Micheal


  1. How to save Uploaded image in custom option panel? | - September 14, 2011

    […] […]

  2. WPSmith | Example Custom Post Type Tutorials - March 2, 2012

    […] Before/After Images: 1. […]

  3. Bookmarks for June 27th through July 27th | Peng's Blog - July 27, 2012

    […] How to Create a Custom Post Type with Image Uploads For WordPress 3 – SIC Digital Creative Age… – […]

Leave a Reply
